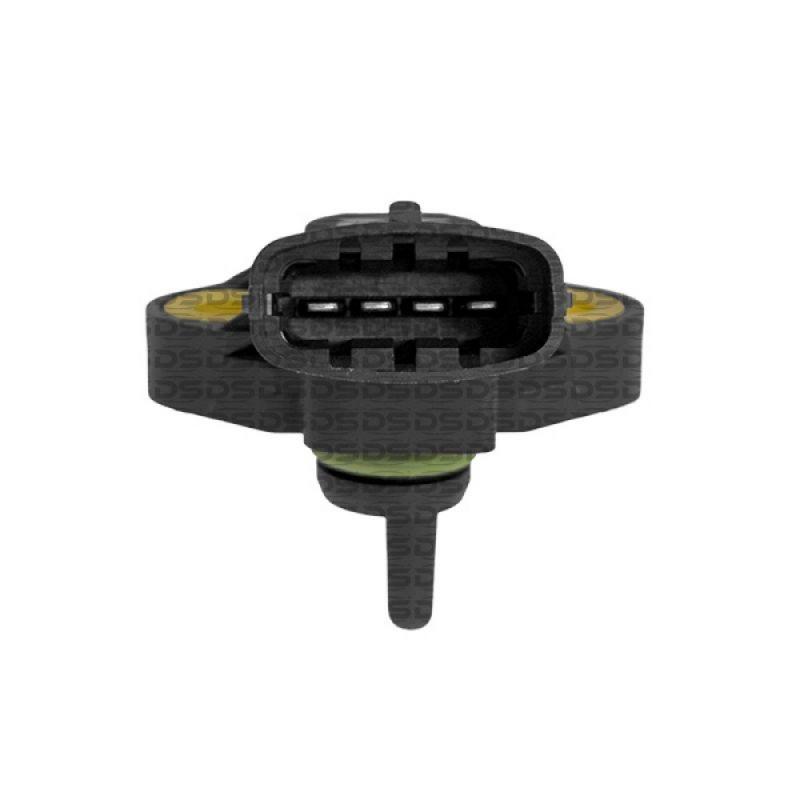

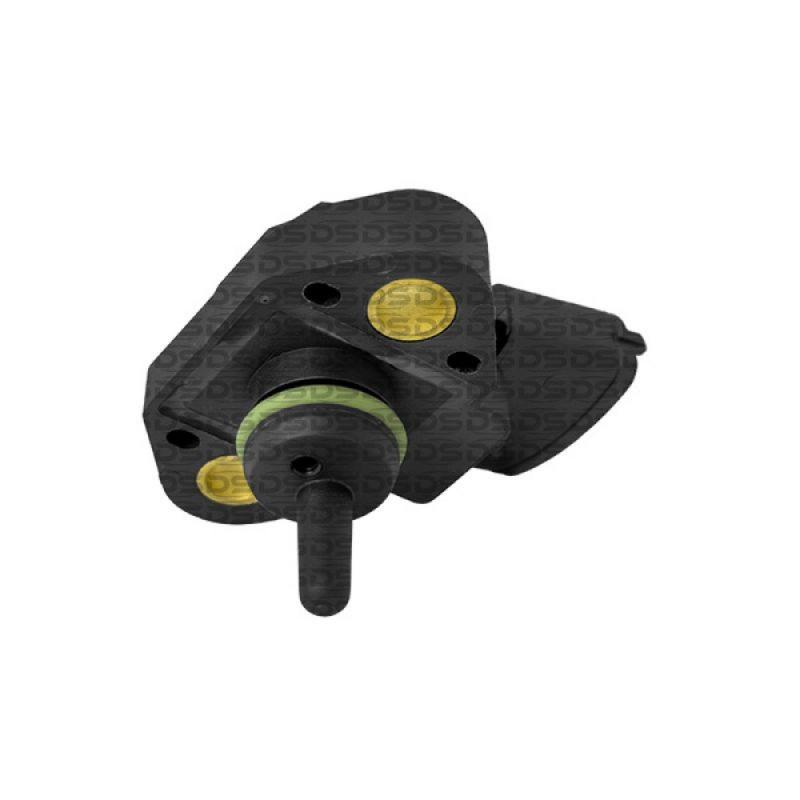

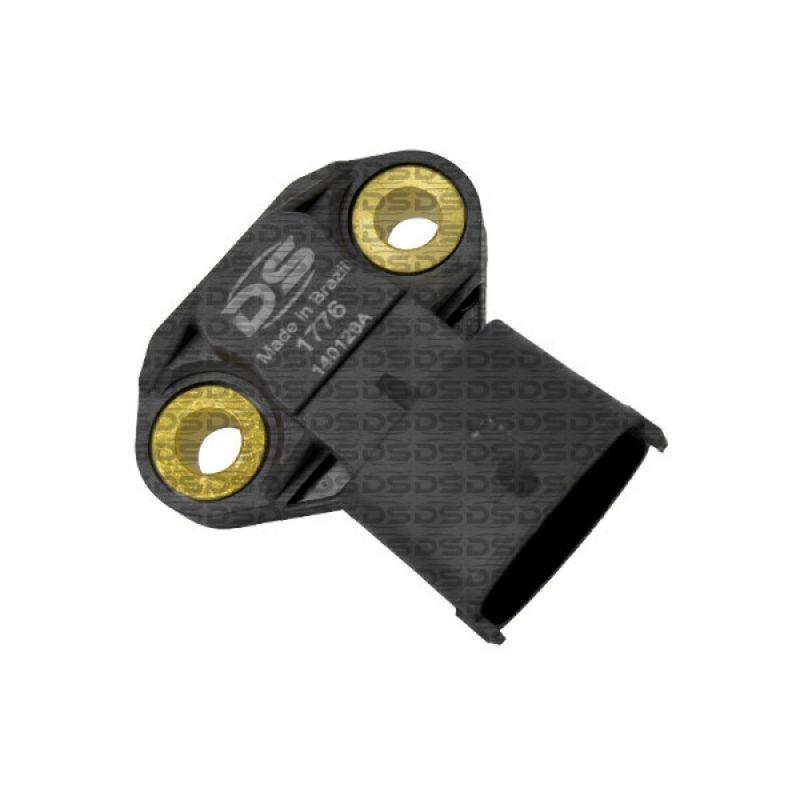

Manifold Absolute Pressure Sensor (MAP)

DS Code:1776
Ways: 04


Bosch:0281002420
Bosch:0281002246
Cummins:4893926
FORD:BG5X9D290BA
IVECO:504358206
MAN:51094137002
MAN:51274210156
MERCEDES-BENZ:A0041532028
MTE:71085
MWM:961200690014
VW:2R0906051F
VW:2R0906051B

Manufacturer	Model	Engine	Fuel	Year	Note
Agrale	8500 E-tronic	4.12 TCE	Diesel	05 > 11	Euro 3
Agrale	9200 E-tronic	4.12 TCE	Diesel	05 > 11	Euro 3
Agrale	MA 7.5 E-tronic	4.12 TCE	Diesel	05 > 05
Agrale	MA 8.5 E-tronic	4.12 TCE	Diesel	05 > 11
Agrale	MA 9.2 E-tronic	4.12 TCE	Diesel	05 > 11	Euro 3
Agrale	W9 4.8 Acteon	4.12 TCE	Diesel	06 > 11	Euro 3
Ford	Cargo	-	Diesel	-
Iveco	170E25	-	Diesel	08 > 12
Iveco	170E28	-	Diesel	11 > 19
Iveco	240E25	-	Diesel	08 > 12
Iveco	CC 170E22	-	Diesel	06 > 11
Iveco	EuroCargo 170 E 22	-	Diesel	05 > 11
Iveco	EuroCargo 230 E 22	-	Diesel	06 > 09
Iveco	EuroCargo 230 E 24	-	Diesel	06 > 11
Iveco	Stralis 330	-	Diesel	09 > 15
Iveco	Stralis 360	-	Diesel	12 > 15
Iveco	Stralis 440	-	Diesel	12 > 15
Iveco	Stralis 480	-	Diesel	11 > 19
Iveco	Stralis 560	-	Diesel	13 >
Iveco	Trakker 380 T 38	-	Diesel	04 > 06
Iveco	Trakker 380 T 42	-	Diesel	06 > 06
Iveco	Trakker 410 T44	-	Diesel	12 > 17
Iveco	Trakker 410 T48	-	Diesel	12 > 17
Iveco	Trakker 720 T42	-	Diesel	06 > 06
Iveco	Vertis 130V18	-	Diesel	10 > 12
Iveco	Vertis 130V19	-	Diesel	12 > 16
Iveco	Vertis 90V16	-	Diesel	10 > 15
Iveco	Vertis 90V18	-	Diesel	12 > 16
MAN	Caminhões MAN	-	-	-
Mercedes-Benz	1215 C	OM 904 LA	Diesel	00 > 04
Mercedes-Benz	1718M	OM 904 LA	Diesel	01 > 05
Mercedes-Benz	712C	OM 904 LA	Diesel	99 > 04
Mercedes-Benz	914C	OM 904 LA	Diesel	99 > 04
Mercedes-Benz	Accelo 915 C	OM 904 LA	Diesel	03 > 05
Mercedes-Benz	Atego 1315C	OM 904 LA	Diesel	04 > 10
Mercedes-Benz	L1218EL	OM 904 LA	Diesel	01 > 04
Mercedes-Benz	L1418EL	OM 904 LA	Diesel	01 > 05
Volkswagen	13.180 E Constellation	-	Diesel	06 > 18
Volkswagen	13.180 E	-	Diesel	05 > 11
Volkswagen	15.180 E	-	Diesel	05 > 11
Volkswagen	15.180 E	-	Diesel	06 > 11
Volkswagen	15.180 EOD	-	Diesel	05 > 07
Volkswagen	15.190 EOD	-	Diesel	06 > 12
Volkswagen	17.210 EOD	-	Diesel	04 > 07
Volkswagen	17.230 EOD	-	Diesel	06 > 12
Volkswagen	17.260 EOT	-	Diesel	04 > 12
Volkswagen	26.260 E Constellation	-	Diesel	08 > 11
Volkswagen	26.260 E	-	Diesel	06 > 11
Volkswagen	31.260 E Constellation	-	Diesel	08 > 11
Volkswagen	31.260 E	-	Diesel	06 > 11
Volkswagen	5.140 E Delivery	-	Diesel	05 > 11
Volkswagen	5.140 EOD	-	Diesel	05 > 12
Volkswagen	8.150 E Delivery	-	Diesel	05 > 16
Volkswagen	8.150 EOD	-	Diesel	04 > 12
Volkswagen	9.150 E Delivery	-	Diesel	05 > 16
Volkswagen	9.150 EOD	-	Diesel	04 > 12
Volvo	VM 210	4.12 TCE	Diesel	06 > 11	5A 206
Volvo	VM 260	6.12 TCE	Diesel	06 > 11	7A 260
Volvo	VM 310	6.12 TCE	Diesel	06 > 11	7A 310

Details Manifold Absolute Pressure Sensor (MAP)

The manifold absolute pressure sensor (MAP) informs the electronic control unit (ECU) the absolute pressure measured inside the intake manifold under the several operation conditions of the engine.

The value obtained is added to the information of air temperature. With these data, the system identifies the air mass that is being intake, calculates the progress of the ignition and the time for opening the injection nozzle, always looking for the ideal air/fuel ratio.

On older vehicles, the MAP sensor is fixed next to the engine and connected to the intake manifold through a hose.

In more modern vehicles, the MAP sensor is integrated and its function is to inform the pressure in the intake manifold and the temperature of the air. The sensor is directly fixed by screws on the intake manifold (it does not use a hose).
