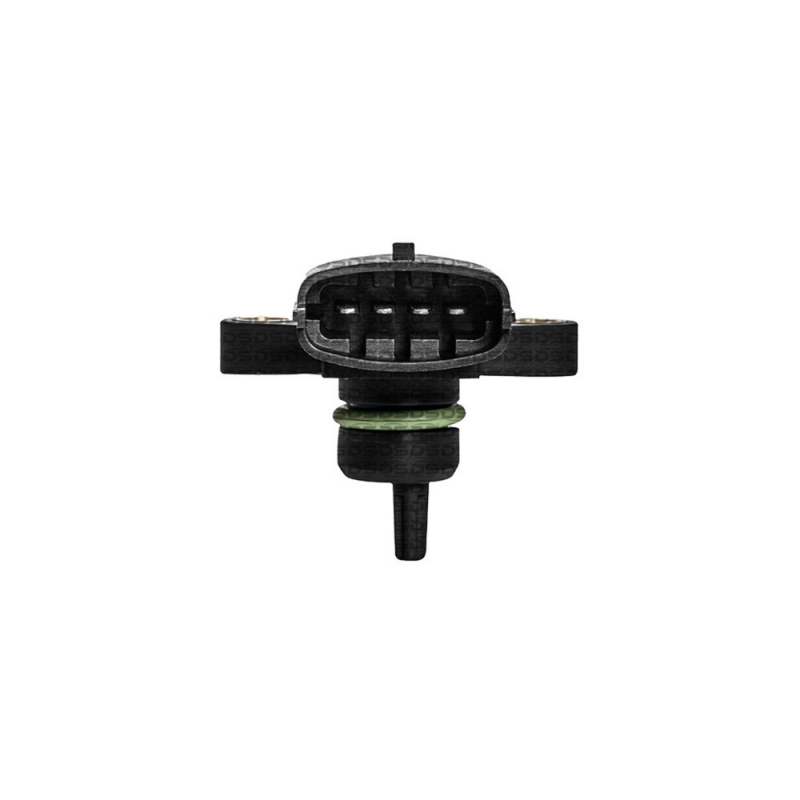

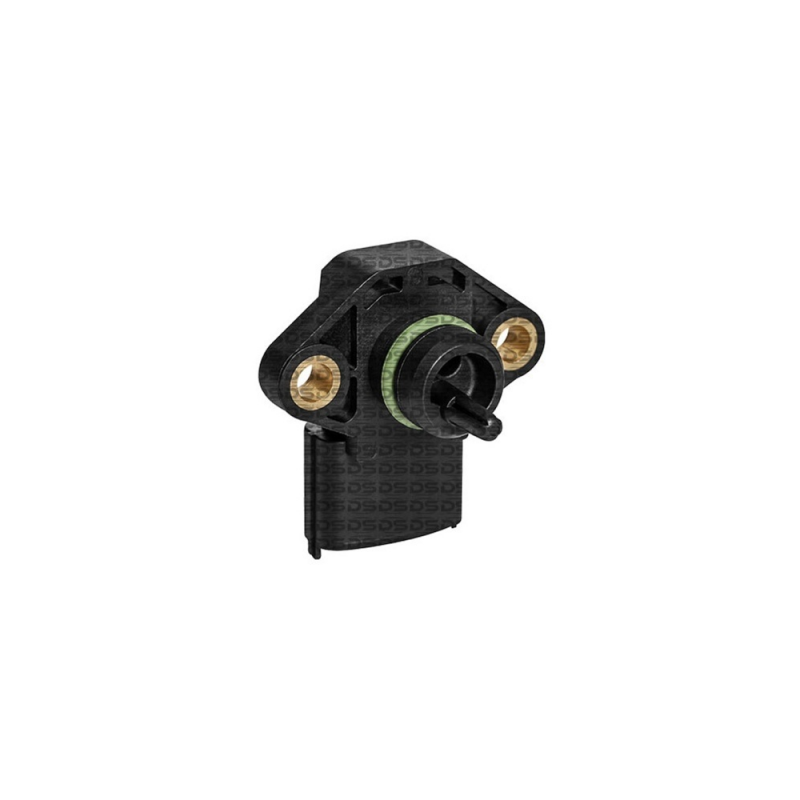

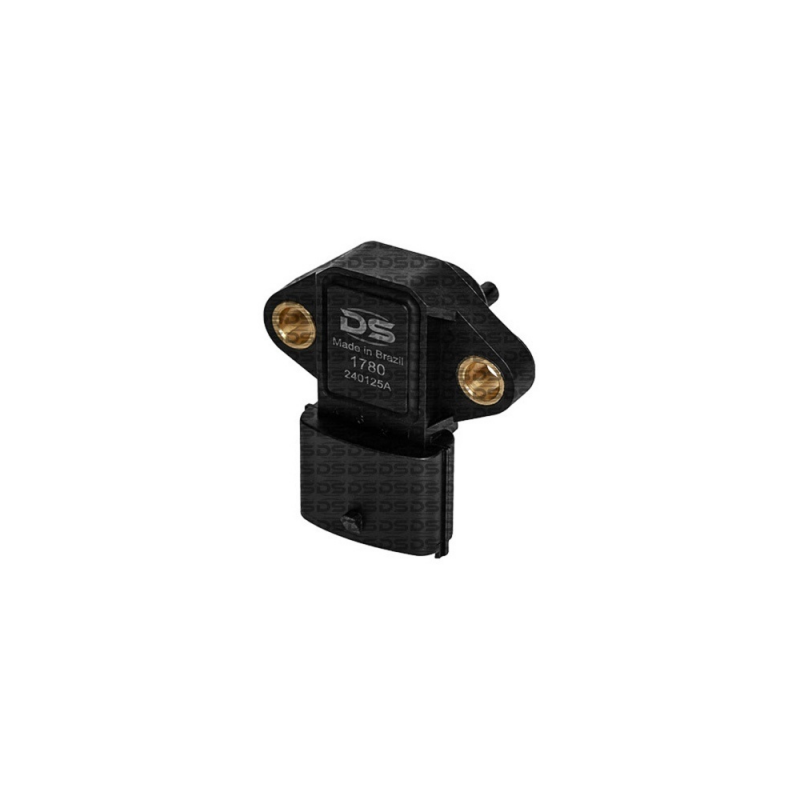

Manifold Absolute Pressure Sensor (MAP)

DS Code:1780
Ways: 04 | Note: The absolute pressure sensors (MAP) 1780 and 1765, despite their identical appearance and application (HR 2.5 8v 4Cil Turbo Diesel), are different parts. The original codes provided on the website must be strictly followed.


Facet:103131
HYUNDAI:9490930503
HYUNDAI:3920027400
HYUNDAI:3920042020
HYUNDAI:3920042030
KIA:9490930503
KIA:3920027400
KIA:3920042020
KIA:3920042030
MAXAUTO:0201134411
MTE:71089

Manufacturer	Model	Engine	Fuel	Year
Hyundai	H100	2.5 4Cil 8v	Diesel	07 > 14
Hyundai	HR	2.5 4Cil 8v	Diesel	07 > 14
Kia	Bongo K2500	2.5 4Cil 8v	Diesel	11 > 16

Details Manifold Absolute Pressure Sensor (MAP)

The manifold absolute pressure sensor (MAP) informs the electronic control unit (ECU) the absolute pressure measured inside the intake manifold under the several operation conditions of the engine.

The value obtained is added to the information of air temperature. With these data, the system identifies the air mass that is being intake, calculates the progress of the ignition and the time for opening the injection nozzle, always looking for the ideal air/fuel ratio.

On older vehicles, the MAP sensor is fixed next to the engine and connected to the intake manifold through a hose.

In more modern vehicles, the MAP sensor is integrated and its function is to inform the pressure in the intake manifold and the temperature of the air. The sensor is directly fixed by screws on the intake manifold (it does not use a hose).
