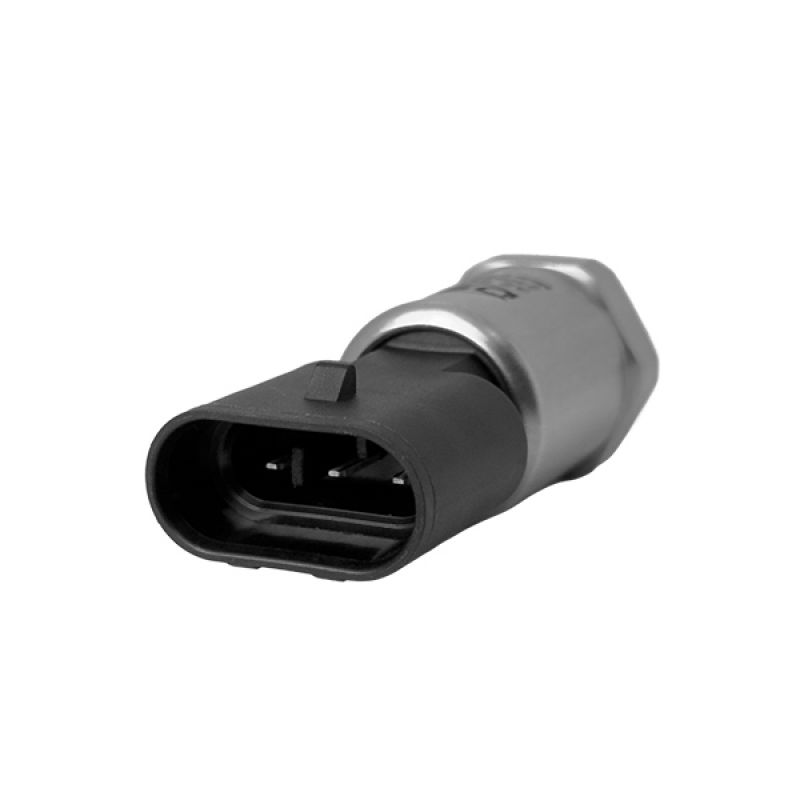

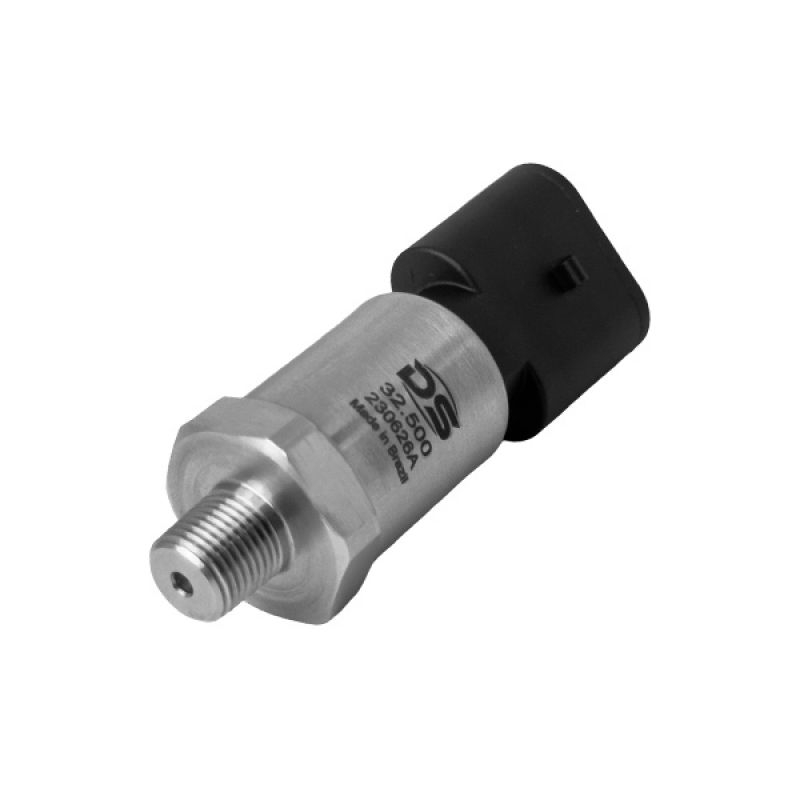

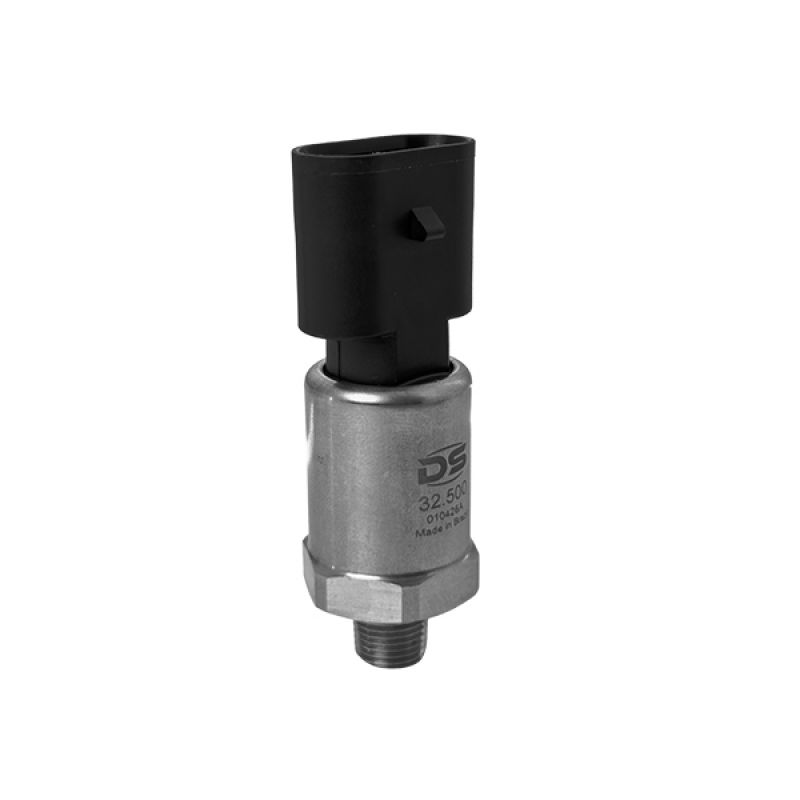

Pressure Sensor
DS Code:32500
Type: Oil, fuel, water, turbo, brake, or exhaust backpressure. | Thread diameter: 1/8" 27 NPT | Energy Supply: 12V | Connector: Electrical 3-way AMP Superseal | Pressure (bar): 0 a 10 | Material: IP67 stainless steel body | Number of Connector Pins: 1: Battery negative | Number of Connector Pins: 2: Output signal 1 to 5V | Number of Connector Pins: 3: 12V power supply
| Manufacturer | Model | Engine | Fuel | Year | Note |
|---|---|---|---|---|---|
| FuelTech | - | - | - | - | Universal adaptation product, no specific application. |
Details Pressure Sensor
Built with high-strength materials and cutting-edge technology, DS pressure sensors meet the most demanding agricultural and automotive applications.
Their outstanding precision and reliability make them an excellent choice for efficient and safe system control whether monitoring engine oil pressure, air conditioning performance, air pressure in pneumatic systems, or gas concentration in exhaust systems.
Thanks to their advanced design, they can be used with various substances such as water, oil, fuels, gases, and liquid foods.
With IP67 protection rating, DS sensors are built to perform even in the harshest environments resistant to humidity, dust, vibration, sunlight, and other challenging conditions.
