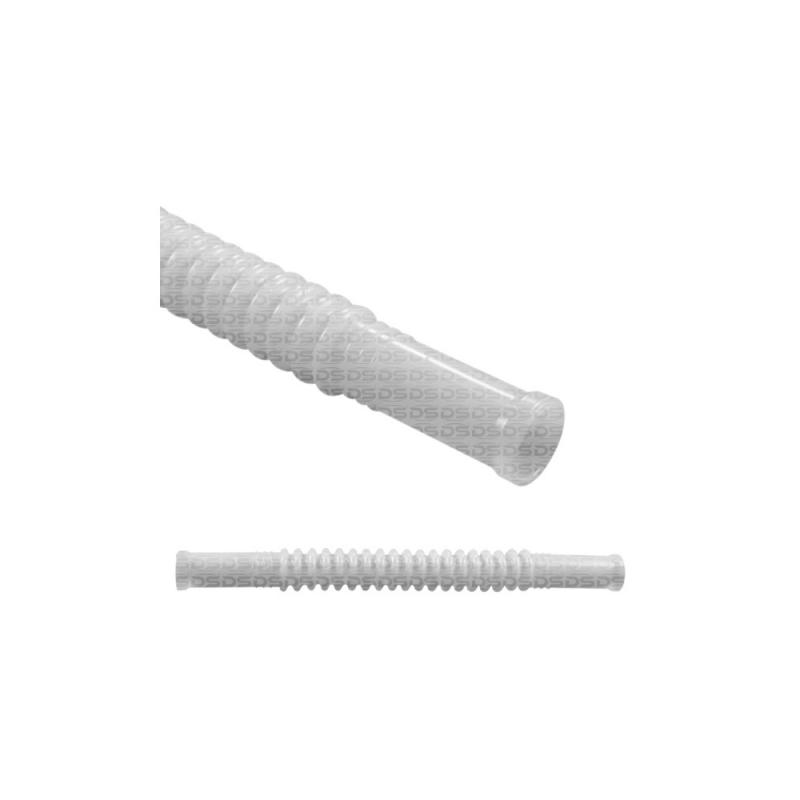

Fuel Pump-Module Corrugated Tube

DS Code:1501
Nozzle 01: 7,5 | Nozzle 02: 7,5 | Length (mm): 130 | Material: PA12


ASSVE:AMC0021
Cristal:1355
Cristal:1705
Cristal:1720
DSC:20130
Estevão:TCB001
TSA:T040101

Manufacturer	Model	Engine	Fuel	Year	Note
Citroën	C3	1.4 4Cil 8v	Gasoline	03 >
Citroën	C3	1.4 4Cil 8v	Flex	05 > 12
Citroën	C3	1.4 4Cil 8v	Flex	> 12
Citroën	C3	1.6 4Cil 16v	Flex	05 > 12
Citroën	C3	1.6 4Cil 16v	Flex	> 12
Citroën	C3	1.6 4Cil 16v	Gasoline	03 >
Citroën	C4 Lounge	1.6 4Cil 16v	Gasoline	13 >	THP
Citroën	C4 Lounge	2.0 4Cil 16v	Flex	13 >
Diversas	-	Todos	All	-
Fiat	Bravo	1.4 4Cil 16v	Gasoline	11 >	T-Jet
Fiat	Palio	1.0 4Cil 16v	Gasoline	02 > 03	MPI
Fiat	Palio	1.0 4Cil 8v	Gasoline	02 > 05	MPI
Fiat	Palio	1.3 4Cil 16v	Gasoline	02 > 03	MPI
Fiat	Palio	1.3 4Cil 8v	Gasoline	02 > 03	MPI
Fiat	Palio	1.6 4Cil 16v	Gasoline	02 > 03	MPI
Fiat	Palio	1.8 4Cil 16v	Gasoline	03 > 04	MPI
Fiat	Siena	1.0 4Cil 16v	Gasoline	02 > 03	MPI
Fiat	Siena	1.0 4Cil 8v	Gasoline	02 > 05	MPI
Fiat	Siena	1.3 4Cil 16v	Gasoline	02 > 03	MPI
Fiat	Siena	1.3 4Cil 8v	Gasoline	02 > 04	MPI
Fiat	Siena	1.8 4Cil 8v	Gasoline	03 > 04	MPI
Fiat	Stilo	1.8 4Cil 8v	Flex	06 > 11	MPI
Ford	Ecosport	1.6 4Cil 8v	Flex	05 > 07
Ford	Ecosport	2.0 4Cil 16v	Flex	08 > 12	Duratec
Ford	Ecosport	2.0 4Cil 16v	Flex	08 > 12	4x2 Duratec
Ford	Fiesta	1.0 4Cil 8v	Flex	06 >
Ford	Fiesta	1.6 4Cil 8v	Flex	04 > 06
Ford	Ka	1.0 4Cil 8v	Flex	08 > 13	Zetec
Ford	Ka	1.6 4Cil 8v	Flex	08 > 13	Zetec
GM	Agile	1.4 4Cil 8v	Flex	09 >
GM	Celta	1.0 4Cil 8v	Flex	09 >	VHCE
GM	Celta	1.0 4Cil 8v	Flex	05 > 06	VHC
GM	Celta	1.0 4Cil 8v	Gasoline	00 > 06
GM	Celta	1.0 4Cil 8v	Gasoline	01 > 09	VHC
GM	Celta	1.0 4Cil 8v	Flex	06 > 08	VHC
GM	Celta	1.4 4Cil 8v	Gasoline	01 > 09	VHC
GM	Classic	1.0 4Cil 8v	Flex	08 >	VHCE
GM	Classic	1.0 4Cil 8v	Flex	05 > 06	VHC
GM	Classic	1.0 4Cil 8v	Flex	06 > 08	VHC
GM	Corsa	1.0 4Cil 8v	Flex	08 > 09	VHCE
GM	Corsa	1.0 4Cil 8v	Gasoline	00 > 05
GM	Corsa	1.0 4Cil 8v	Gasoline	02 > 05
GM	Corsa	1.0 4Cil 8v	Flex	05 > 08
GM	Corsa	1.0 4Cil 8v	Gasoline	04 > 09
GM	Corsa	1.4 4Cil 8v	Flex	07 >
GM	Corsa	1.8 4Cil 8v	Flex	03 > 08
GM	Meriva	1.4 4Cil 8v	Flex	08 > 12
GM	Montana	1.4 4Cil 8v	Flex	09 >
GM	Montana	1.4 4Cil 8v	Flex	07 > 10
GM	Prisma	1.0 4Cil 8v	Flex	09 > 11	VHCE
GM	Prisma	1.0 4Cil 8v	Gasoline	07 > 09
GM	Prisma	1.4 4Cil 8v	Gasoline	07 > 09
GM	Prisma	1.4 4Cil 8v	Flex	06 > 13
GM	Prisma	1.4 4Cil 8v	Flex	06 >
GM	Vectra	2.0 4Cil 8v	Flex	09 > 11
GM	Vectra	2.0 4Cil 8v	Flex	06 > 09
GM	Vectra	2.4 4Cil 16v	Flex	06 > 09
Peugeot	208	1.5 4Cil 8v	Flex	13 >
Peugeot	308	1.6 4Cil 16v	Gasoline	12 >	THP
Peugeot	408	1.6 4Cil 16v	Gasoline	12 >
Peugeot	408	2.0 4Cil 16v	Flex	11 >
Volkswagen	Gol G2	1.0 4Cil 16v	Gasoline	97 > 99	Mi
Volkswagen	Gol G2	1.0 4Cil 8v	Gasoline	99 > 05	Mi
Volkswagen	Gol G2	1.0 4Cil 8v	Gasoline	96 >	Mi
Volkswagen	Gol G2	1.6 4Cil 8v	Gasoline	96 > 99	Mi
Volkswagen	Gol G2	1.8 4Cil 8v	Gasoline	96 > 02	Mi
Volkswagen	Gol G2	2.0 4Cil 8v	Gasoline	96 > 99	Mi
Volkswagen	Gol G3	1.0 4Cil 16v	Gasoline	00 > 03	Turbo
Volkswagen	Gol G3	1.0 4Cil 16v	Gasoline	99 > 05	Mi
Volkswagen	Gol G3	1.0 4Cil 8v	Gasoline	99 > 05
Volkswagen	Gol G3	1.6 4Cil 8v	Gasoline	99 > 05	Mi
Volkswagen	Gol G3	1.8 4Cil 8v	Gasoline	99 > 03	Mi
Volkswagen	Gol G3	2.0 4Cil 8v	Gasoline	99 > 02
Volkswagen	Gol	1.0 4Cil 8v	Gasoline	97 >
Volkswagen	Gol	1.6 4Cil 8v	Gasoline	97 >
Volkswagen	Gol	1.8 4Cil 8v	Gasoline	97 >
Volkswagen	Gol	2.0 4Cil 16v	Gasoline	96 >
Volkswagen	Parati G2	1.0 4Cil 16v	Gasoline	97 > 99	Mi
Volkswagen	Parati G2	1.6 4Cil 8v	Gasoline	96 > 99	Mi
Volkswagen	Parati G2	1.8 4Cil 8v	Gasoline	96 > 99	Mi
Volkswagen	Parati G2	2.0 4Cil 16v	Gasoline	96 > 99	Mi
Volkswagen	Parati G2	2.0 4Cil 8v	Gasoline	96 > 99	Mi
Volkswagen	Parati G3	1.0 4Cil 16v	Gasoline	99 > 03	Mi
Volkswagen	Parati G3	1.0 4Cil 16v	Gasoline	00 > 04	Turbo
Volkswagen	Parati G3	1.6 4Cil 8v	Gasoline	99 > 05	Mi
Volkswagen	Parati G3	1.8 4Cil 8v	Gasoline	99 > 05	Mi
Volkswagen	Parati G3	2.0 4Cil 16v	Gasoline	99 > 00	Mi
Volkswagen	Parati G3	2.0 4Cil 8v	Gasoline	99 > 05	Mi
Volkswagen	Parati	1.0 4Cil 8v	Gasoline	97 >
Volkswagen	Parati	1.6 4Cil 8v	Gasoline	97 >
Volkswagen	Parati	1.8 4Cil 8v	Gasoline	97 >
Volkswagen	Parati	2.0 4Cil 16v	Gasoline	97 >

Details Fuel Pump-Module Corrugated Tube

The corrugated tube (it looks like a hose) allows the fuel to flow from the electric pump to the seal (cap) of the fuel module (where it is located).

The tube should support all pressure of the fuel line and be flexible in order to not prevent the module movements.

The electric pump models using this type of hose have a ridged outlet nozzle.
