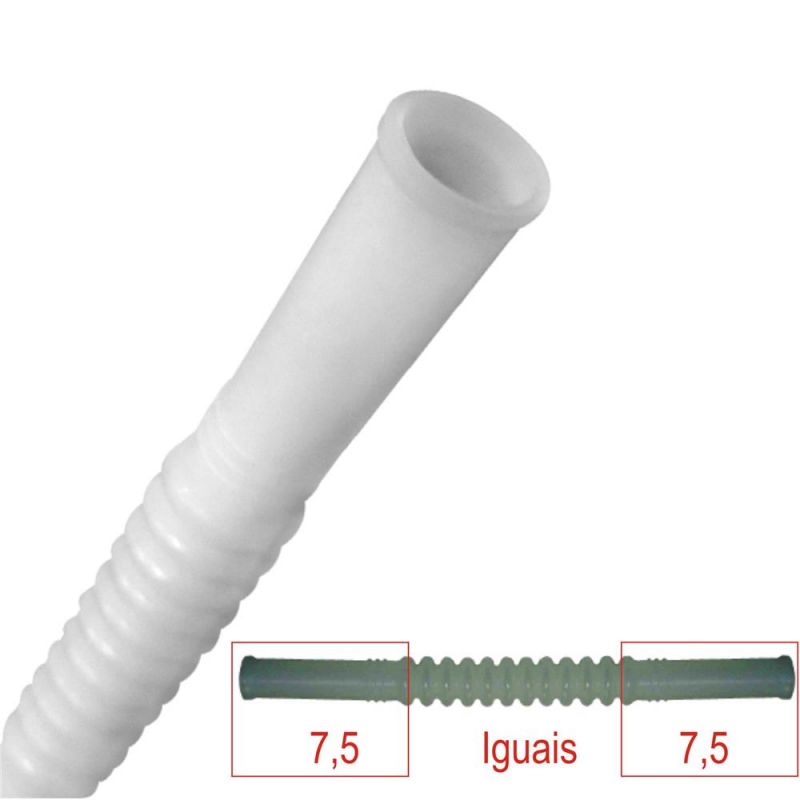

Fuel Pump-Module Corrugated Tube

DS Code:1502
Nozzle 01: 7,5 | Nozzle 02: 7,5 | Length (mm): 155 | Material: PA12


ASSVE:AMC0016
Cristal:1354
Cristal:1371
Cristal:1704
Cristal:1721
DSC:20150
Estevão:TCB002
TSA:T040102

Manufacturer	Model	Engine	Fuel	Year	Note
Diversas	-	Todos	All	-
Fiat	Fiorino	1.3 4Cil 8v	Gasoline	03 > 06	MPI
Fiat	Fiorino	1.3 4Cil 8v	Flex	07 >	MPI
Fiat	Grand Siena	1.4 4Cil 8v	Flex	12 >
Fiat	Grand Siena	1.4 4Cil 8v	Flex	12 >
Fiat	Grand Siena	1.6 4Cil 8v	Flex	12 >
Fiat	Idea	1.4 4Cil 8v	Flex	05 > 10
Fiat	Idea	1.6 4Cil 16v	Flex	10 >
Fiat	Idea	1.8 4Cil 16v	Flex	10 >
Fiat	Idea	1.8 4Cil 8v	Flex	05 > 10
Fiat	Linea	1.4 4Cil 16v	Gasoline	08 > 12	T-Jet
Fiat	Palio Adventure	1.6 4Cil 16v	Gasoline	00 > 03	MPI
Fiat	Palio Adventure	1.8 4Cil 16v	Flex	10 > 12
Fiat	Palio Adventure	1.8 4Cil 8v	Gasoline	03 > 04	MPI
Fiat	Palio Adventure	1.8 4Cil 8v	Flex	06 > 10	MPI
Fiat	Palio Adventure	1.8 4Cil 8v	Flex	12 >
Fiat	Palio Weekend	1.0 4Cil 16v	Gasoline	00 > 02	MPI
Fiat	Palio Weekend	1.3 4Cil 16v	Gasoline	00 > 02	MPI
Fiat	Palio Weekend	1.3 4Cil 8v	Flex	04 > 05	MPI
Fiat	Palio Weekend	1.4 4Cil 8v	Flex	05 > 10
Fiat	Palio Weekend	1.4 4Cil 8v	Flex	10 >	MPI
Fiat	Palio Weekend	1.6 4Cil 16v	Gasoline	01 > 03	MPI
Fiat	Palio Weekend	1.6 4Cil 8v	Flex	10 > 12
Fiat	Palio Weekend	1.8 4Cil 8v	Flex	04 > 08	MPI
Fiat	Palio	1.0 4Cil 16v	Gasoline	02 > 03	MPI
Fiat	Palio	1.0 4Cil 16v	Flex	11 >
Fiat	Palio	1.0 4Cil 8v	Gasoline	02 > 05	MPI
Fiat	Palio	1.0 4Cil 8v	Flex	05 > 10	MPI
Fiat	Palio	1.0 4Cil 8v	Flex	05 >	MPI Fire
Fiat	Palio	1.3 4Cil 16v	Gasoline	02 > 03	MPI
Fiat	Palio	1.3 4Cil 8v	Flex	03 > 05	MPI
Fiat	Palio	1.3 4Cil 8v	Gasoline	02 > 03	MPI
Fiat	Palio	1.4 4Cil 16v	Flex	11 >
Fiat	Palio	1.4 4Cil 8v	Flex	05 > 11	MPI
Fiat	Palio	1.6 4Cil 16v	Gasoline	02 > 03	MPI
Fiat	Palio	1.6 4Cil 16v	Flex	10 >
Fiat	Palio	1.8 4Cil 8v	Flex	04 > 10	MPI
Fiat	Palio	1.8 4Cil 8v	Gasoline	03 > 04	MPI
Fiat	Punto	1.4 4Cil 16v	Gasoline	09 >	T-Jet
Fiat	Punto	1.4 4Cil 8v	Flex	07 > 08
Fiat	Punto	1.8 4Cil 8v	Flex	07 > 08
Fiat	Siena	1.0 4Cil 16v	Gasoline	02 > 03	MPI
Fiat	Siena	1.0 4Cil 8v	Flex	05 > 12	MPI Fire
Fiat	Siena	1.0 4Cil 8v	Gasoline	02 > 05	MPI Fire
Fiat	Siena	1.0 4Cil 8v	Flex	05 > 12	MPI
Fiat	Siena	1.3 4Cil 16v	Gasoline	02 > 03
Fiat	Siena	1.3 4Cil 8v	Flex	04 > 05	MPI
Fiat	Siena	1.3 4Cil 8v	Gasoline	02 > 04	MPI
Fiat	Siena	1.4 4Cil 8v	Flex	05 > 12	MPI
Fiat	Siena	1.4 4Cil 8v	Flex	12 >
Fiat	Siena	1.6 4Cil 16v	Flex	10 > 12
Fiat	Siena	1.8 4Cil 8v	Gasoline	03 > 04	MPI
Fiat	Siena	1.8 4Cil 8v	Flex	04 > 10	MPI
Fiat	Strada	1.4 4Cil 8v	Flex	05 > 12	MPI
Fiat	Strada	1.4 4Cil 8v	Flex	12 >
Fiat	Strada	1.4 4Cil 8v	Flex	06 > 07	MPI Fire
Fiat	Strada	1.8 4Cil 16v	Flex	10 > 12	MPI
Fiat	Strada	1.8 4Cil 16v	Flex	12 >
Fiat	Strada	1.8 4Cil 8v	Flex	04 > 10	MPI
Fiat	Uno	1.0 4Cil 8v	Flex	10 >
Fiat	Uno	1.0 4Cil 8v	Gasoline	04 > 06	MPI
Fiat	Uno	1.0 4Cil 8v	Flex	05 > 13	MPI
Fiat	Uno	1.3 4Cil 8v	Gasoline	04 > 07	MPI
Fiat	Uno	1.3 4Cil 8v	Flex	07 > 13	MPI
Fiat	Uno	1.4 4Cil 8v	Flex	10 >
Fiat	Uno	1.5 4Cil 8v	Ethanol	00 > 04	MPI
Ford	Courier	1.6 4Cil 8v	Flex	08 > 13	Zetec
Ford	Ecosport	1.0 4Cil 8v	Flex	> 06
Ford	Ecosport	1.0 4Cil 8v	Gasoline	03 >
Ford	Ecosport	1.6 4Cil 16v	Flex	12 > 14	Sigma
Ford	Ecosport	1.6 4Cil 8v	Flex	07 > 12
Ford	Ecosport	1.6 4Cil 8v	Gasoline	03 >
Ford	Ecosport	1.6 4Cil 8v	Flex	> 06
Ford	Ecosport	2.0 4Cil 16v	Flex	12 > 14	Sigma
Ford	Ecosport	2.0 4Cil 16v	Flex	12 > 14	Powershift Duratec
Ford	Ecosport	2.0 4Cil 16v	Flex	12 > 14	4WD Duratec
Ford	Ecosport	2.0 4Cil 16v	Gasoline	04 > 07	4WD
Ford	Ecosport	2.0 4Cil 16v	Gasoline	03 > 06
Ford	Ecosport	2.0 4Cil 16v	Flex	07 > 12
Ford	Fiesta	1.0 4Cil 8v	Gasoline	02 >
Ford	Fiesta	1.0 4Cil 8v	Flex	06 > 14	Zetec
Ford	Fiesta	1.0 4Cil 8v	Flex	> 06
Ford	Fiesta	1.6 4Cil 8v	Gasoline	02 >
Ford	Fiesta	1.6 4Cil 8v	Flex	> 06
Peugeot	307	1.6 4Cil 16v	Flex	06 >
Peugeot	307	2.0 4Cil 16v	Flex	08 >
Peugeot	308	1.6 4Cil 16v	Flex	12 >
Toyota	Corolla	1.8 4Cil 16v	Flex	08 >
Toyota	Corolla	2.0 4Cil 16v	Flex	10 >

Details Fuel Pump-Module Corrugated Tube

The corrugated tube (it looks like a hose) allows the fuel to flow from the electric pump to the seal (cap) of the fuel module (where it is located).

The tube should support all pressure of the fuel line and be flexible in order to not prevent the module movements.

The electric pump models using this type of hose have a ridged outlet nozzle.
