• Fuel Pump-Module Corrugated Tube

Fuel Pump-Module Corrugated Tube

DS Code:1509

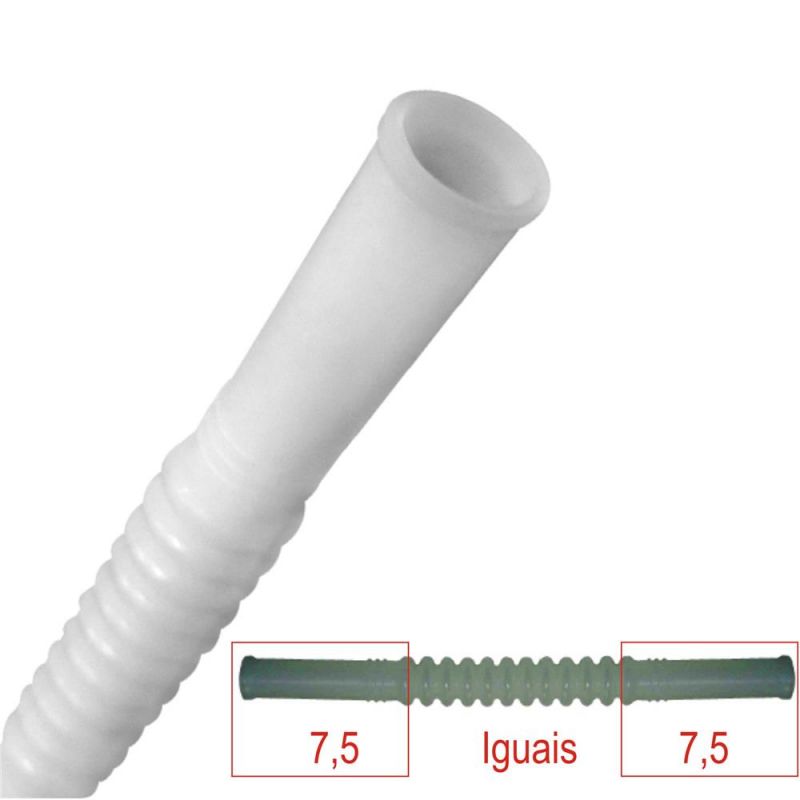

Nozzle 01: 7,5 | Nozzle 02: 7,5 | Length (mm): 330 | Material: PA12

ASSVE:AMC0001
Cristal:1350
Cristal:1372
Cristal:1700
Cristal:1707
Cristal:1728
DSC:20330
Estevão:TCB330
TSA:T040109
Manufacturer Model Engine Fuel Year Note
Diversas - Todos All -
GM Corsa 1.0 4Cil 8v Gasoline 02 > VHC
GM Corsa 1.0 4Cil 8v Flex 04 > 14 VHC
GM Corsa 1.0 4Cil 8v Flex 05 > 08 VHC
GM Corsa 1.0 4Cil 8v Flex > 05 VHC
GM Corsa 1.0 4Cil 8v Gasoline 02 > VHC
GM Corsa 1.0 4Cil 8v Flex > 12 VHC
GM Corsa 1.0 4Cil 8v Gasoline 02 > VHC
GM Corsa 1.0 4Cil 8v Flex > 05 VHC
GM Corsa 1.4 4Cil 8v Flex 07 > 12
GM Corsa 1.4 4Cil 8v Flex 04 > 14 VHC
GM Corsa 1.8 4Cil 8v Flex 02 > 12 VHC
GM Corsa 1.8 4Cil 8v Flex 02 > 12 MPFI
GM Corsa 1.8 4Cil 8v Flex 03 > 05 MPFI
GM Corsa 1.8 4Cil 8v Flex 02 >
GM Corsa 1.8 4Cil 8v Flex 05 > 09 MPFI
GM Zafira 2.0 4Cil 8v Flex 04 > 12 MPFI

Details Fuel Pump-Module Corrugated Tube

The corrugated tube (it looks like a hose) allows the fuel to flow from the electric pump to the seal (cap) of the fuel module (where it is located).

The tube should support all pressure of the fuel line and be flexible in order to not prevent the module movements.

The electric pump models using this type of hose have a ridged outlet nozzle.
